DU-875 Cockpit Display Upgrade
FANS 1/A+ Upgrade
32 inch Monitor and Video Server in Entertainment Cabinet
Engines enrolled on Rolls-Royce Corporate Care
APU enrolled on Honeywell MSP
Enrolled on CAMP
Enrolled on Bombardier Smart Parts

Year: 2012
Total Time: 2512.4
Landings: 1009
Maintenance Tracking Program: CAMP
Aircraft is enrolled on Smart Parts Plus
LEFT ENGINE
Rolls Royce BR710A2-20
Serial Number: 12973
Hours: 2512.4
Cycles: 1009
HSI and Overhaul: On Condition

RIGHT ENGINE
Rolls Royce BR710A2-20
Serial Number: 12974
Hours: 2512.4
Cycles: 1009
HSI and Overhaul: On Condition
Engines are enrolled on Corporate Care
APU: Allied Signal RE-220 (GX), s/n P-553; 2324 hours
APU is enrolled on Honeywell MSP

 INTERIOR
• BCCM Montreal completed March 2012
• Fireblocked; FAA, TCCA and EASA STC
• Twelve/Thirteen (12/13) passengers plus one (1) jump seat. Jump seat for
crew use only
• Crew rest area not for passengers during TTL with fwd cabin door enabled

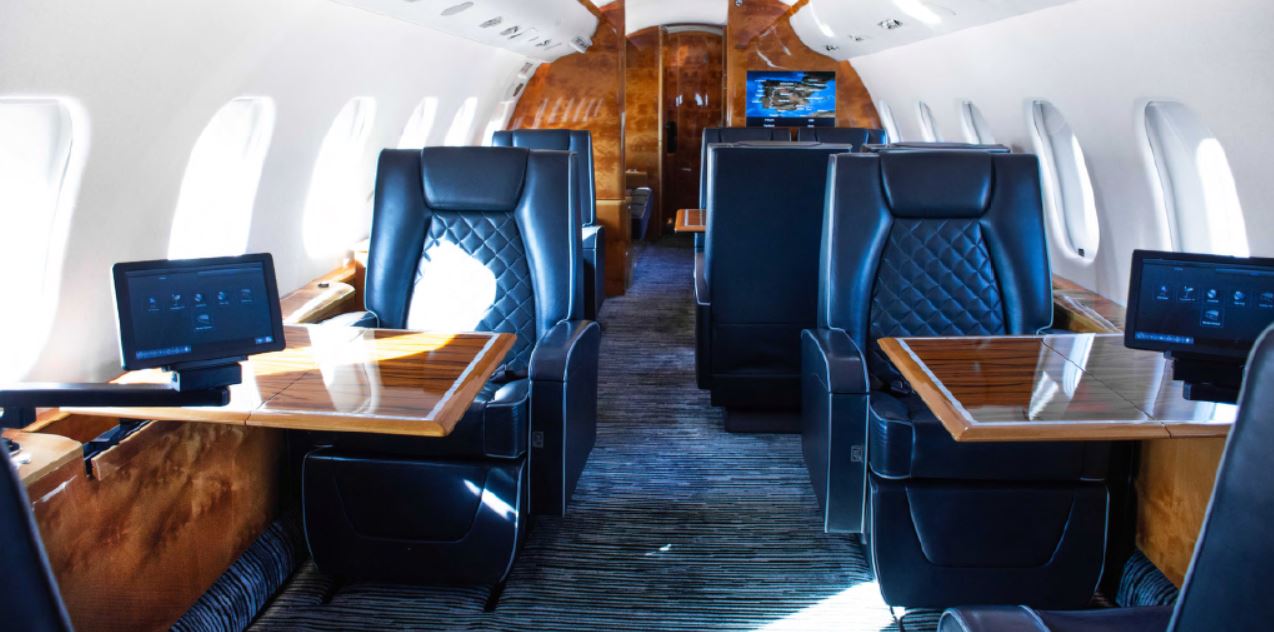

• Fwd cabin features four (4) executive club seats with two (2) foldout tables

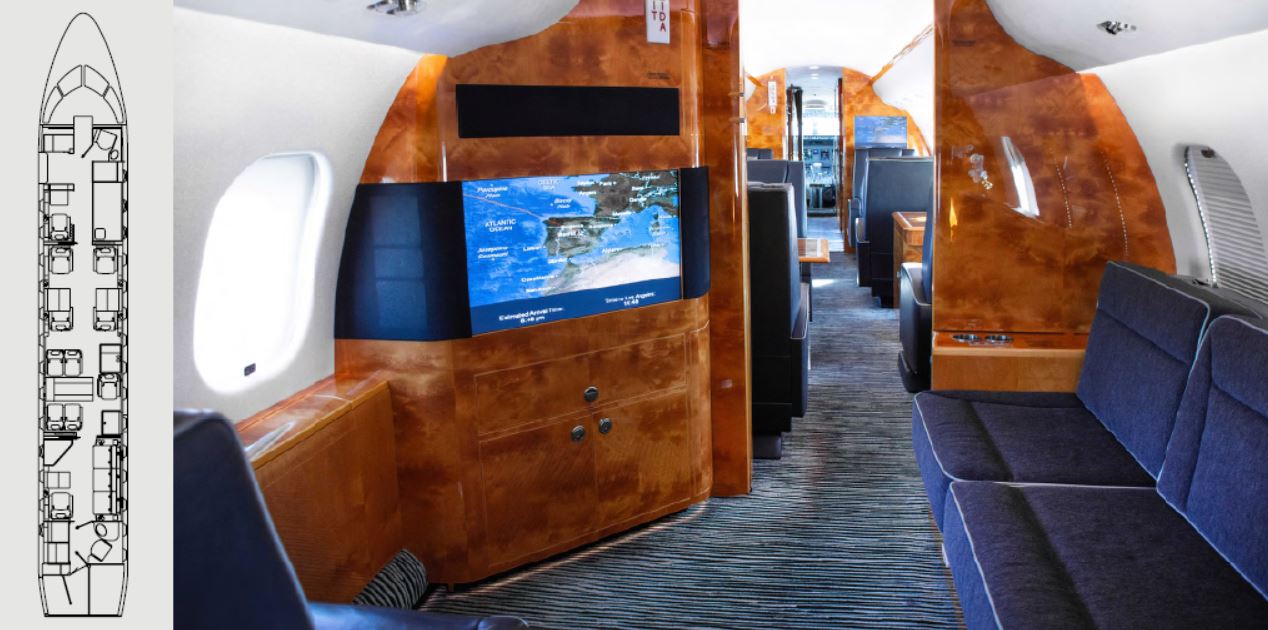

• Mid-cabin features a four (4) place conference group w/ table on the
LH side and a single (1) seat workstation on the RH side
• Aft cabin features a three (3) place (2 plc TTL w/ bulkhead installed) divan
on the RH side and one (1) executive seat with foldout table on the LH side
• Fwd and aft lavatories
• Galley is forward RH and equipped with a high-temp oven, microwave,
espresso maker and air chiller area

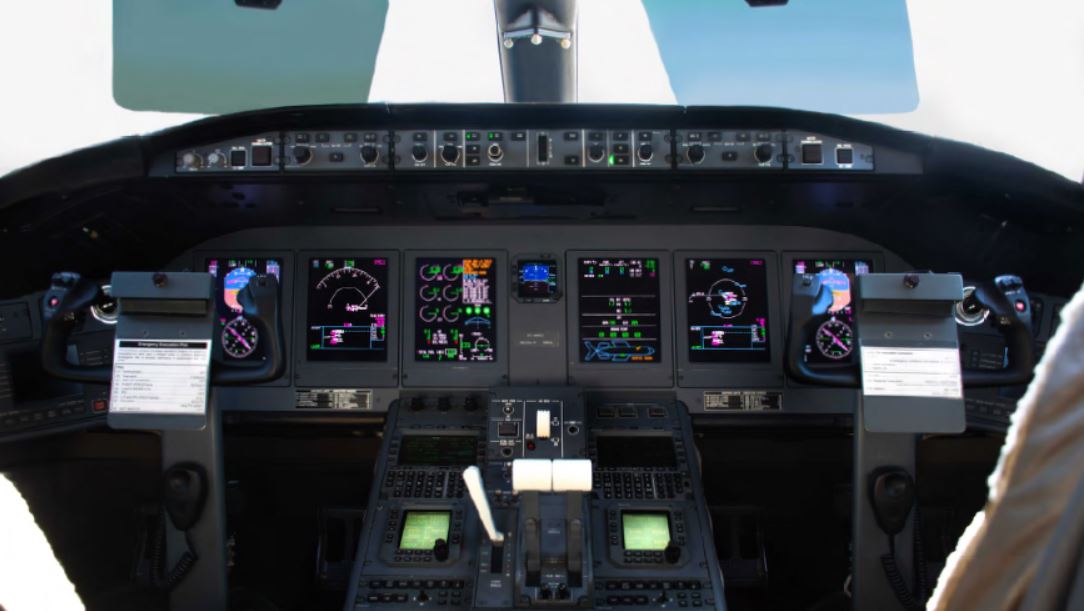

Honeywell 2000 XP Integrated Avionics System:
• Six 8"x 7" DU-875 Color EFIS displays, 2 PFD/2 EICAS/2 MFD
• Triple Honeywell HG-2001GD03 Inertial Reference Units
• Triple Honeywell AZ-940 Micro Air Data Computers (MADC)
• Four Honeywell DA-810 Data Acquisition Units (DAU)
• Triple Honeywell NZ-2000 Integrated Flight Management System
• Dual Honeywell GNSSU GPS w/ WAAS/LPV
• Triple IC-800 Integrated Avionics Computers (IAC)
• Primus 880 Color Weather Radar
• Dual Honeywell Primus II RM-855 Radio Management Units
• Dual Honeywell RCZ-833M Integrated COM/Ident Radios w/ Enhanced Mode S Diversity Transponders
(8.33 kHz compliant) 3rd VHF Comm

Installation Honeywell RCZ-833 (8.33 MHz)
• Dual Honeywell RNZ-851 Integrated NAV Radios with VOR/ILS/MKR/ADF/DME (FM Immunity compliant)
• Dual Collins ALT-4000 Radio Altimeters
• Dual Collins HF-9031A HF Communication System
• Avtech CSD-714 SELCAL
• Honeywell TCAS 2000 TCAS II (Change 7.1 incorporated)
• Lightning Detect System (LSS)
• Honeywell Mk V EGPWS
• Allied Signal SSFDR Digital Flight Data Recorder w/ CFMS and 90 Day ULB
• Allied Signal SSCVR Digital Cockpit Voice Recorder w/ Datalink Recording, RIPS and 90 Day ULB
• Quick Access Recorder

EXTERIOR
• BCCM Montreal painted March 2012
• Aircraft is painted Marathon White with Black lower fuselage, winglets and
lower vertical
WEIGHTS
Gross Weight (Ramp): 99,750 lbs
Max Take-off Weight: 99,500 lbs
Max Landing Weight: 78,600 lbs
Max Zero fuel Weight: 56,000 lbs
Basic Operating Weight: 51,464 lbs
